Stationary low-floor animal scales. This weighing station fits in any aisle.

Investments in stationary weighing machines are worthwhile.

For consistent optimization of animal farming it is absolutely necessary to carry out control weighing on a regular basis. Such control leads to important information which helps to increase economic efficiency of fattening and breeding farms: e.g. accurate data related to weight increases, effective animal control during weighing process, carcass yield and fattening control as well as selling weight of piglets and fatteners. Maximum returns can only be achieved at optimum selling weight.

Accurate weighing and comfortable details.

Our stationary low-floor scales are used for weighing of groups and also for fast weighing of individual animals before slaughtering. It is constructed to fit into the requested position inside your stable and excels with excellent practice-oriented handling.



Easy access to the scales - Even for rearing piglets.

These scales can be placed in the stable aisles due to the very low access height of only 2 cm. The scales are very easy to access for humans and animals and do not need to be embedded in the floor. This is not only time saving, there are also no more lowerings in the floors which often cause dirt and water accumulations.

Fast and stress-free weighing of animal groups thanks to many innovative details.

From practice

Ludwig Rasche, manager of a pig fattening farm, says “What I like best is the fast, comfortable and easy weighing. The weight indicator works well and fast.  The scale has everything I need. I also use the chassis to park the scale in front of the individual pen in which I want to weigh. Since I drive the animals from different sides onto the scales, I also had the second remote control attached. The automatic door opener is especially great because you never have to push past the animals to open the gates.”

Narrow bar spacing.

The narrow bar spacing makes it possible to weigh even small rearing piglets.



Anti-skid floor.

Animals are placed on corrosion resistant aluminium (cattle transport base plate) which is anti-skid and easy to clean.



Corrosion-free aluminium construction.

Made of especially for this weighing machine developed floor profiles and entirely welded square profiles to ensure best stability and low net weight.

Double doors.

Equipped with snap-function, opens completely inwards and outwards. Therefore length of scales can be calculated to reach the door of the pen.



Remote operation by foot pedal.

Both double doors can be opened by foot pedal from the other side. Springs push the doors outwards and keep them open. The animals can easily walk through. No space next to the scales needed to walk all the way through to the other side to open the opposite side gate.

NEW: Weighing display for fast weighing

The new weighing display facilitates the quick sorting of the pigs with the help of a traffic light display. The desired weight range can be programmed individually and is displayed in green when weighing. Weights above and below the desired range are marked by red and yellow.

Weights are stored and totaled if necessary and can be transferred to the computer via a standard USB interface.

The display is large and bright and also easy to read in the stable. An animal weighing program as well as an automatic rebalancing also facilitate the fast animal weighing. The power supply is via mains adapter or battery operation.



Weighing using zero position

Depending on operational conditions, sorting of fattening pigs before slaughter date can be carried out very efficiently with the low-floor scales. Especially by taking advantage of the scale’s zero position. To do so, just let all the pigs enter the scales together ever since it is much easier for them to walk out one at a time than to walk in one at a time. Once the animals are all on the scale, tare the weighing display to zero position. After the first animal left the scale, the display shows the individual animal weight by indicating a minus weight; tare again and so on until all pigs are weighed individually.

The weights of the animals are recorded and stored as usual during weighing process, and the traffic light display can also be used for sorting.



Performance in detail.

  • Dust and pressurized water protected weighing technology
  • Can be cleaned with high-pressure cleaner
  • Remote unlocking of exits by foot pedal
  • Remote unlocking of entrance door optionally
  • Animal weighing program for moving animals
  • Automatic taring in case of soiling
  • Power supply via mains adapter or optionally battery powered
  • PC and printer connection or data transfer via download kit (optionally)
  • All cable inside rails for protection against rodents
  • Calibration on request
  • 3 years warranty
  • Many special dimensions and designs possible

Smooth-running chassis.

Due to the weighing machine's mobility it is possible to reach covered manure scrapers or plugs. The chassis makes it possible to move the scales along the aisle.

Special equipment on request:

  • Chassis with wheel units
  • Second remote control gate
  • Verifiable electronics
  • Special dimensions
  • Special gates



Product Details

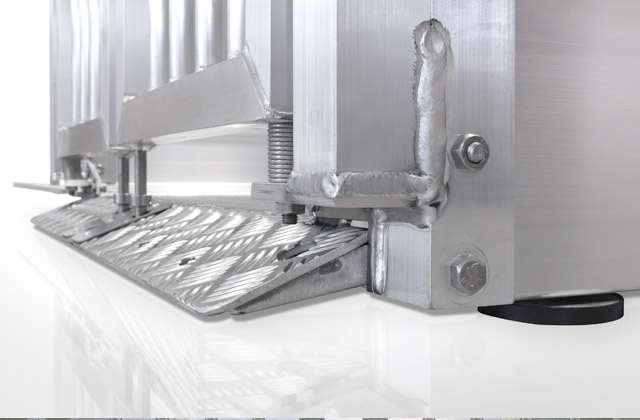

  • Only 2 cm access height and therefore no need to embed scales in floor.

    Stationary animal weighing machine - ONLY 2 cm access height
    Only 2 cm access height - the low-floor weighing machine does not require floor embedding and can be moved with chassis, if requested!

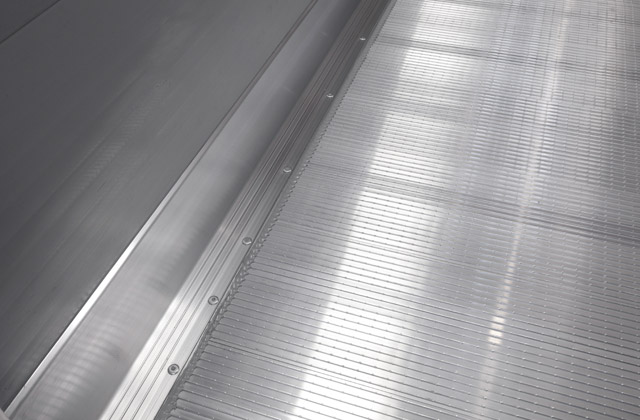

  • The aluminium floor of the stationary low-floor scales is made of robust and anti-skid cattle transport profiles which are easy to clean and safe for animals to stand on. The special design ensures high stability and allows large dimensions.

    Stationary animal weighing machines - Aluminium floor
    Aluminium floor made of robust and anti-skid cattle transport profiles - easy to clean and safe for animals to stand on - special design ensures high stability and allows large dimensions.

  • The new weighing display WA300 for stationary animal scales offers an extended range of functions such as the traffic light function to quickly sort pigs and piglets.

    Stationary animal scales - Weight indicator WA300
    Standard equipment: Weighing display with large, brightly lit digits on membrane keypad and animal weighing program with lock function and automatic rebalancing. Fast sorting possible with traffic light function, storage and USB interface as standard. The membrane keyboard is water- and dustproof.

  • The new weighing display 83 Sigma is the next generation of display animal scales. Both the equipment of calibratable scales and data export are possible.

    Stationary animal weighing machine - Weight indicator 83 Sigma
    The new weighing display 83 Sigma offers the possibility of the calibration, the connection of printers, two serial interfaces, storage and USB connection, as well as the individual adjustment of the print image.

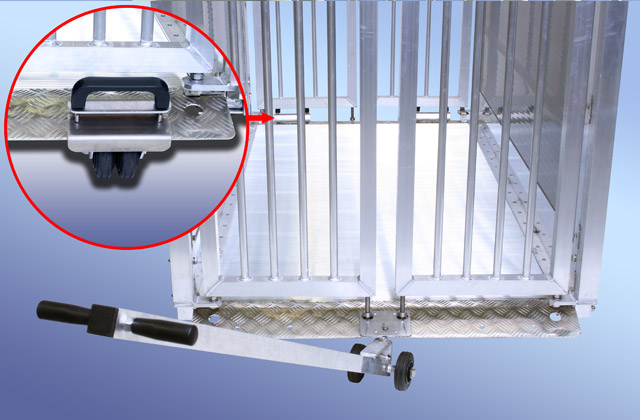

  • The fast and easy to mount chassis makes it possible to move the scales along the aisle. Therefore it is possible to reach otherwise covered manure scrapers or plugs.

    Stationary animal weighing machines - Chassis (OPTION)
    The fast and easy to mount chassis - scales can be flexibly moved in aisles - no more covered manure scrapers or plugs.

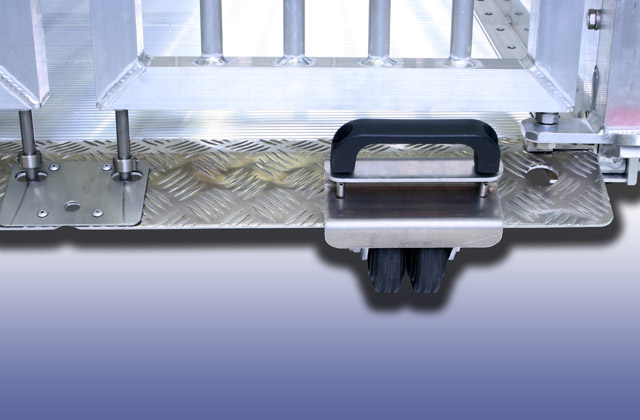

  • A simple push-fit system facilitates attachment of wheel units to the stationary low-floor scale with within a few seconds.

    Stationary low-floor scales - Wheel units mounted to weighing machine (OPTION together with chassis)
    A simple push-fit system facilitates attachment of wheel units to the stationary low-floor scale - chassis can be mounted or dismantled within a few seconds.

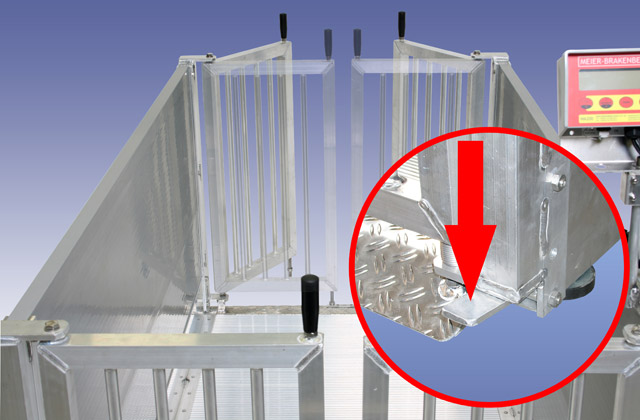

  • Foot pedal remote operation makes it possible to open the door on the opposite side of the stationary low-floor scales. The operator does not have to move back and forth and pass by the animals to open the front gates.

    Stationary low-floor weighing machine - Foot pedal
    Foot pedal remote operation makes it possible to open the door on the opposite side - the operator does not have to pass by the animals to open the front gates.

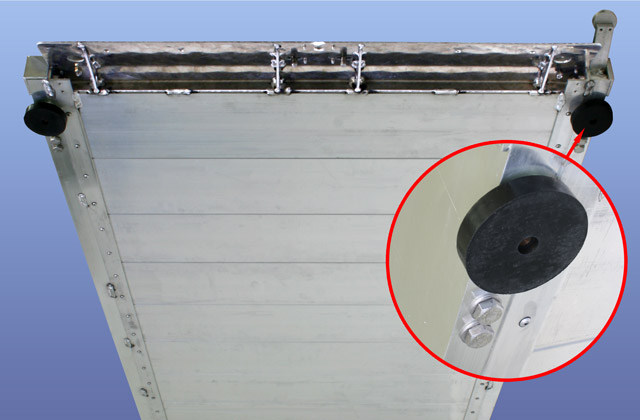

  • The absolutely dust-tight and water-proof stainless steel weighing cells are integrated into the completely closed floor assembly of the stationary low-floor scales. That provides protection against rodents and high functional reliability.

    Stationary animal weighing machines - Floor assembly
    Absolutely dust-tight and water-proof stainless steel weighing cells - protection against rodents, provides high functional reliability.

Technical Data

Standard types Width 1,10 m Width 1,40 m Width 1,80 m
Width x length (m) 1,10 x 2,10
Width x length (m) 1,10 x 2,50 1,40 x 2,50
Width x length (m) 1,10 x 3,10 1,40 x 3,10 1,80 x 3,10
Width x length (m) 1,10 x 3,50 1,40 x 3,50 1,80 x 3,50
Width x length (m) 1,10 x 4,10 1,40 x 4,10 1,80 x 4,10
Width x length (m) 1,10 x 4,50 1,40 x 4,50 1,80 x 4,50
Width x length (m) 1,10 x 5,10 1,40 x 5,10 1,80 x 5,10
