MBH 1500 k. Compact high-pressure cleaner with high washing power.

That one reaches into every corner.

The dimensions of MBH 1500 k are as compact as the dimensions of the MBH 1260 k. The pump provides approx. 20 % more water output. A powerful 6.2 kW motor can be connected to a 16 A power current outlet. Therefore the MBH 1500 k is the ideal professional high-pressure cleaner for all farms with confined spaces.

It reaches any corner and performs perfectly for all important applications thanks to 1,500 l/h - machine washing, in milking parlors or in sow pens. Motor and pump are protected by a stainless steel cover. The long handle facilitates easy and comfortable pushing regardless of the user's body height.

Performance in detail

Powerful 1,500 l/h water output
Only 16 A heavy-duty receptacle for connection required
Versatile, flexible and easy to handle
Large volume 3 cylinder plunger pump with crank shaft drive

The compact professional high-pressure cleaners MBH1260k and MBH1500k supply 21 l or 25 l water output per minute. Suitable for machine cleaning or in milking parlors. In the picture: incl. optional stainless steel hose drum.

The compact one featuring unbeatable advantages.

Low speed of only 1,450 rpm for long service life
Operation with warm water of up to 40 °C
Automatic start-stop and soft start optionally
Robust aluminium chassis
Large solid rubber wheels (never flat)
Lance holders for safe placement of lances
Quick coupling system for fast and easy change of lances
Water filter at water inlet keeps dirt away
Handle in ergonomic working height

Product Details

High-pressure technology - Industrial plunger pump MBH 1500 k
Professional high-pressure pump MBH 1500 k with ceramic piston and brass piston rods - guarantees endurance and long service life.
High-pressure technology - Lance holder
Lance holders as standard secure stable position of all needed high-pressure lances - lances are always ready to hand directly at the device.
High-pressure technology - Safe hose guide
The safe and elaborated hose guide of the hose reel HST - protects the user against wires inside the high-pressure hose material and ensures clean reeling up.

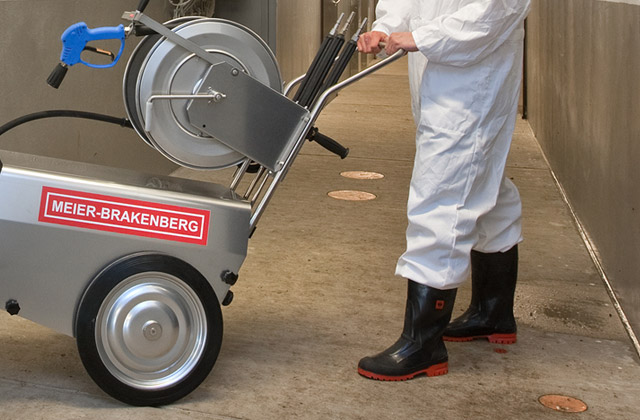

High-pressure technology - Ergonomic handle
Ergonomic position of handle at the professional high-pressure cleaner MBH - allows easy maneuvering - no strain on your back, easy to tilt and stable standing.
High-pressure technology - Water filter
In optimum position and easy to clean: the standard water inlet filter - protects the large volume piston pump against gross contamination. (starting from MBHST1260)
High-pressure technology - KEW-coupling system
High-pressure gun for high flow rates with swivel joint - equipped with KEW-coupling sleeve for fast and safe change of lances.

Technical Data

	MBH1500k
Water output	1,500 l/h
Operating pressure	120 bar
Electric motor	6.2 kW
Motor rotational speed	1,450 U/min
Length x width x height / handle 960 x 550 x 1.260 mm
Standard equipment: 10 m hose, gun with fast coupling, flat-jet lance, circulation pump, stainless steel cover, water filter
